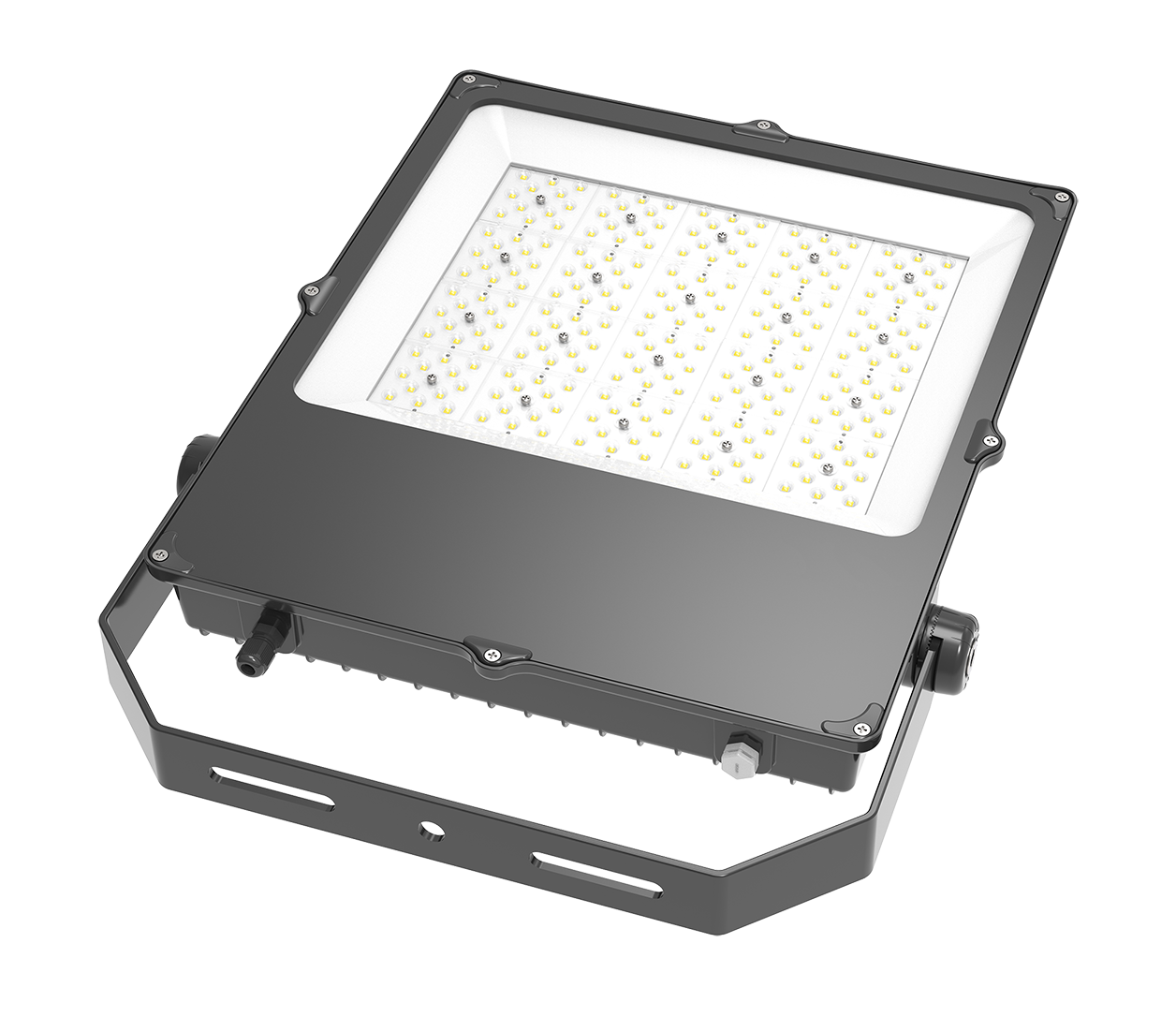

LED G3 Flood light 10W-400W

support hotline:18922812045Consult now

Information details


Product Detail:

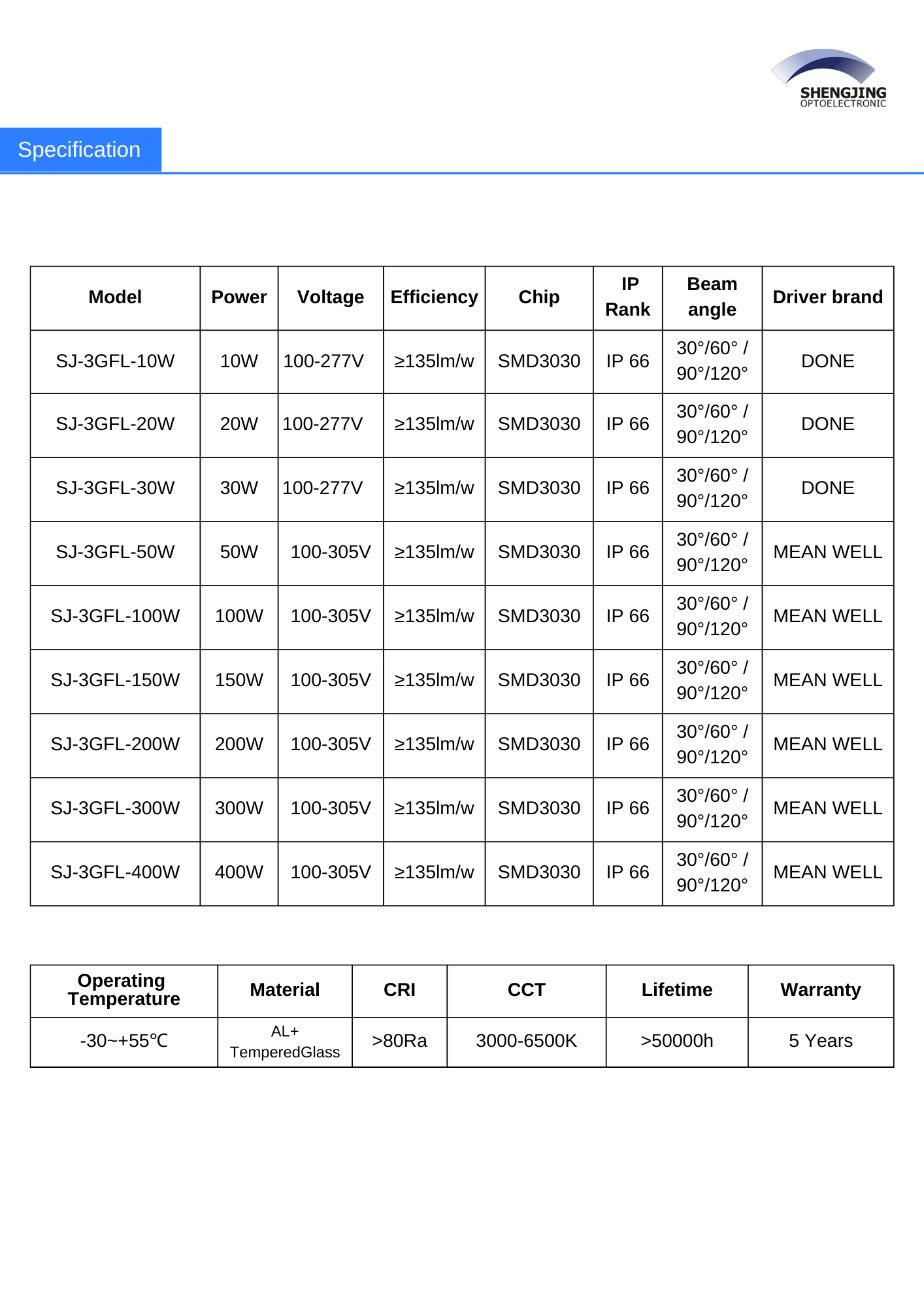

Specification data


ModelSJ-3GFL-10WSJ-3GFL-20WSJ-3GFL-30WSJ-3GFL-50WSJ-3GFL-100WSJ-3GFL-150WSJ-3GFL-200WSJ-3GFL-300WSJ-3GFL-400W
Power 10W20W30W50W100W150W200W300W400W
Product size(mm)182*122*47182*122*47242*169*51282*204*52337*269*52394*394*56445*392*56497*392*56503*545*64
Installation  hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket hoisting/bracket
Input Voltage100-277V100-277V  100-277V   100-305V  100-305V  100-305V  100-305V  100-305V  100-305V
Input Frequency50-60HZ50~60Hz50~60Hz50~60Hz50-60HZ50~60Hz50~60Hz50~60Hz50~60Hz
Power Factor>0.95>0.95>0.95>0.95>0.95>0.95>0.95>0.95>0.95
Light SourceSMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030SMD3030
Driver BrandDONEDONEDONEMEAN WELLMEAN WELLMEAN WELLMEAN WELLMEAN WELLMEAN WELL
CoverLens typeLens typeLens typeLens typeLens typeLens typeLens typeLens typeLens type
MaterialAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlassAL+ TemperedGlass
CCT3000-6500k3000-6500k3000-6500k3000-6500k3000-6500k3000-6500k3000-6500k3000-6500k3000-6500k
Beam Angle30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°30°/60° / 90°/120°
Light Efficacy≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W≥135 LM/W
Luminous Flux1350lm2700 lm 4050 lm 6750 lm 13500lm20250 lm 27000 lm 40500 lm 54000 lm
CRI>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra
Working Temp.-30~+55-30~+55-30~+55-30~+55-30~+55-30~+55-30~+55-30~+55-30~+55
IP RankIP66IP66IP66IP66IP66IP66IP66IP66IP66
Lifespan50,000Hrs50,000Hrs50,000Hrs50,000Hrs50,000Hrs50,000Hrs50,000Hrs50,000Hrs50,000Hrs
Warranty5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
Package(mm)190*180*55190*180*55248*175*60290*226*60345*286*60440*420*115490*420*115540*420*115580*550*115
