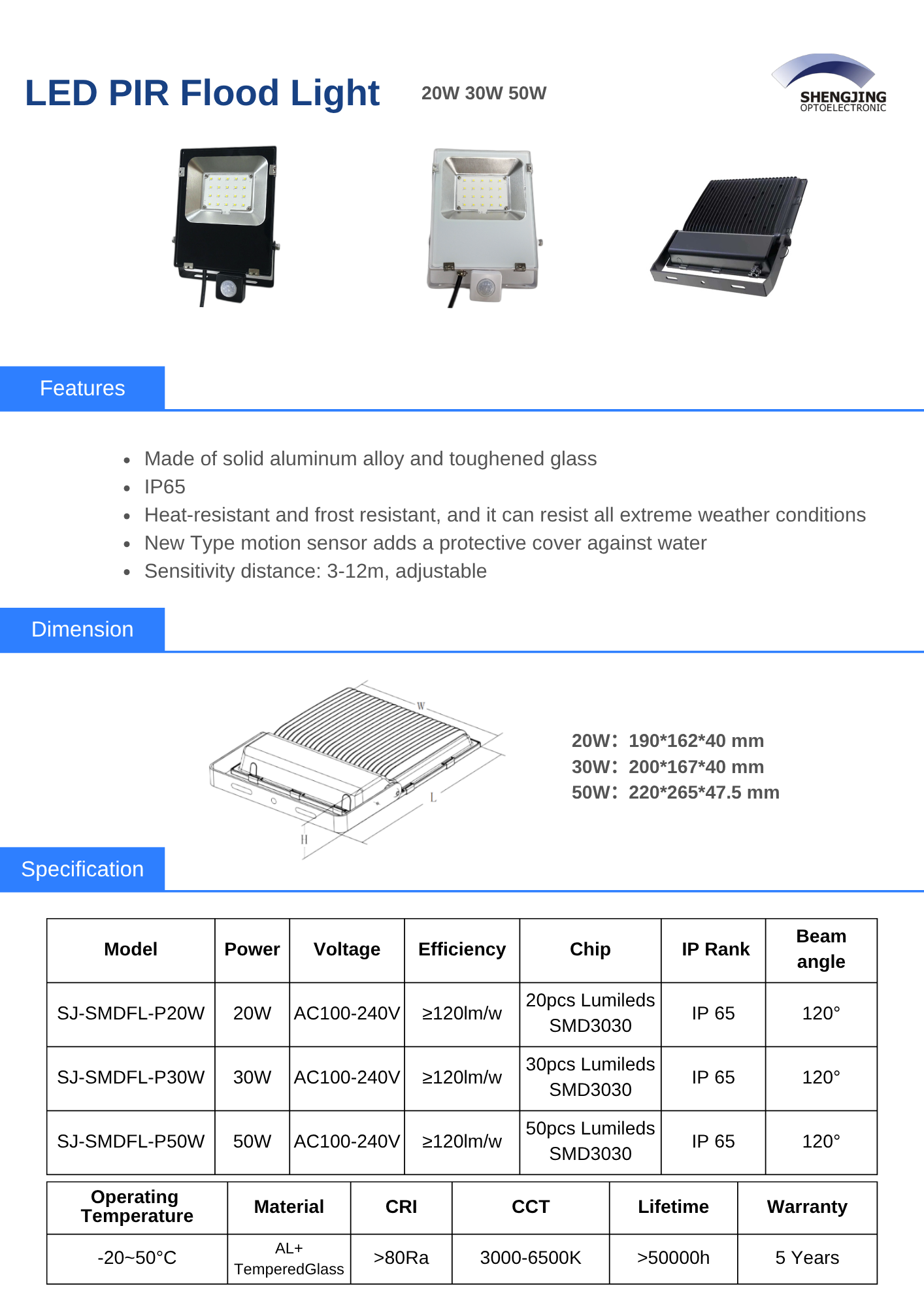

LED PIR Motion Sensor Flood Light

support hotline:18922812045Consult now

Information details

Product Detail:














Specification data

Description
1Product Name20W LED Flood light30W LED Flood light50W LED Flood light
2ModelSJ-SMDFL-P20WSJ-SMDFL-P30WSJ-SMDFL-P50W
3Input voltageAC100-240V AC100-240V AC100-240V
4Driver BrandDoneDoneDone
4Input frequency50~60HZ50~60HZ50~60HZ
5Power factor>0.9>0.9>0.9
6Light source20pcs Lumileds SMD303030pcs Lumileds SMD303050pcs Lumileds SMD3030
7Consumed power20W 30W 50W
8Light efficacy120lm/w120lm/w120lm/w
9Luminous flux2400lm±53600lm±56000lm±5
10CRI>80Ra>80Ra>80Ra
11Color temperature3000-6500K3000-6500K3000-6500K
12IP GradeIP65IP65IP65
13Shell ColorBlack / WhiteBlack / WhiteBlack / White
14MaterialAluminum+Tempered GlassAluminum+Tempered GlassAluminum+Tempered Glass
15Beam angle120 degree120 degree120 degree
16Product Size190*162*40MM200*167*40 mm220*265*47.5 mm
17Net weight0.8 kg1.1 kg1.17kg
18Working temp-40~+90℃-40~+90℃-40~+90℃
19Lifespan50,000Hrs50,000Hrs50,000Hrs
20Warranty5 Years5 Years5 Years
21Sensitivity distance:3-12m, adjustable3-12m, adjustable3-12m, adjustable
22Time:5±2s ~ 4±1min, adjustable5±2s ~ 4±1min, adjustable5±2s ~ 4±1min, adjustable
23LUX:AdjustableAdjustableAdjustable
